11 Channel Lithium Battery Making Machine 1.6KW For 18650 21700
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-BS11 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 3000 - 7900 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Model: | MD-BS11 | Voltage Supply: | 1.6KW,220VAC Input,50HZ 1.6KW,110V110V AC Power Input, 60HZ (for Export, Need To Be Customized) |
|---|---|---|---|
| Air Pressure: | 0.4-0.8Mpa | Display Screen: | 7.5-inch Touch Screen, 3-axis PLC Programmer |
| Suitable For: | 18650 And 21700 Battery Voltage And Resistance Sorting | Receiving Channel: | 11 Channels,(10 Sorting And Matching Channels,1 Unqualified Channel) |
| Internal Resistance Setting: | 0mΩ-999.9 MΩ | Voltage Setting: | 0-6V |
| Production Efficiency: | About 5000pcs/h | Feeding: | By Hopper, 400pcs Cells One Time |
| Highlight: | 1.6KW lithium battery making machine,21700 lithium battery making machine,11 Channel Lithium Battery Production Line |
||
Product Description

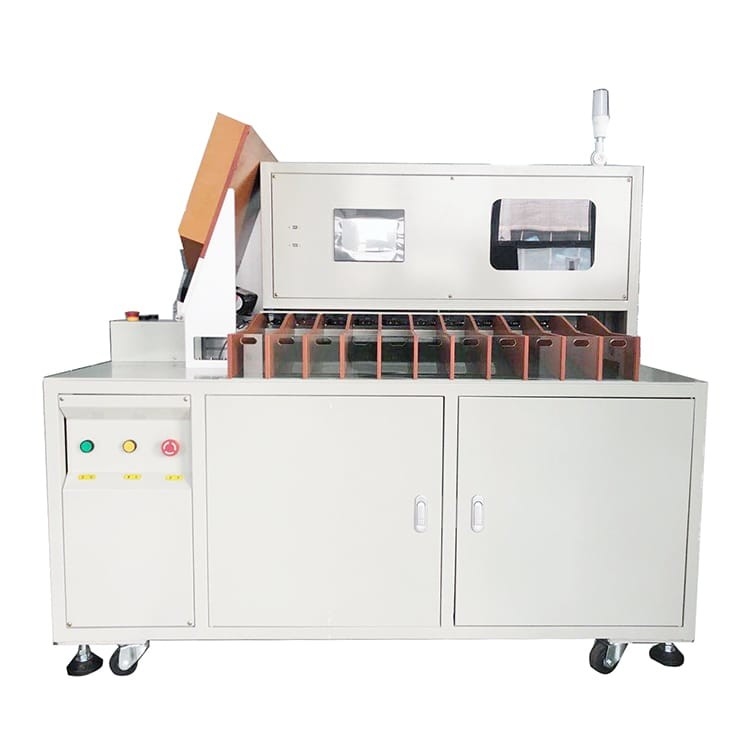

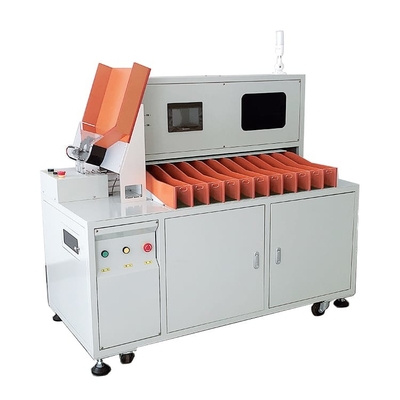

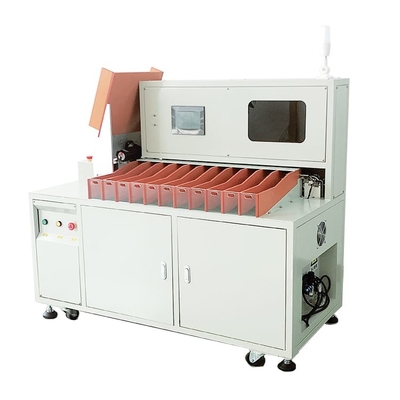

11 channel 18650 and 21700 battery cell Lithium Battery Cell Automatic Sorting Machine
Product Description
It is a must equipment for Battery Pack Manufacturer for voltage and resistance testing and sorting.
Universal model.
8 Channel automatic cell sorter is designed to sort cylindrical 18650 and 21700 cells,
Sort by cell's voltage and impedance up to up to 8 groups
Automatic sorting control
Fast sorting speed (5000 batteries/hr)
Easy to refill cells during the process
wheels design, easy to move the machine to any operating place.
Specification
| Model | MD-BS11 |
| Voltage supply |
1.6KW,220VAC input,50HZ 1.6KW,110V110V AC power input, 60HZ (for export, need to be customized) |
| Air Pressure | 0.4-0.8Mpa |
| Display screen | 7.5-inch touch screen, 3-axis PLC programmer |
| Suitable for | 18650 and 21700 battery voltage and resistance sorting |
| Receiving channel | 9 channels,(8 sorting and matching channels,1 unqualified channel) |
| Internal resistance setting | 0mΩ-999.9 mΩ |
| Voltage setting | 0-6V |
| Production efficiency | About 5000pcs/h |
| Feeding | By hopper, 400pcs cells one time |
| External connection |
Can add Customizable automatic connection with padding machine (price not include ) |
| Tester |
Standard tester: HOPETECH HK3560 tester High speed tester Voltage accuracy 0.00005V Internal resistance precision 0.01 mΩ |
| Motion device |
Step shifting using closed-loop stepper motor, and the positioning is accurate. The synchronous belt conveys the cell to prevent the cell surface damaged |
| Advantage |
Automatic collection the production quantity to show current production efficiency Test data can be stored in U disk Optional cell dynamic tester, Practical embodiment the quality and load performance of cell The equipment debugging is simple, easy to learn and easy to understand, with fault alarm |
| Package size | L1650*W1250*H1690mm |
| Weight | About 350kg |
