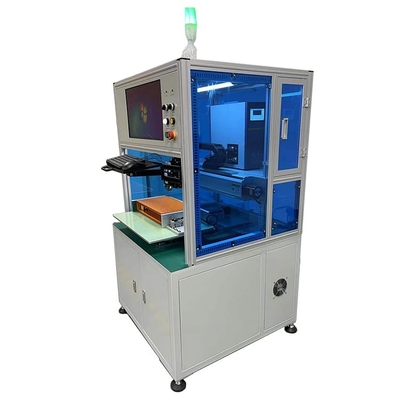

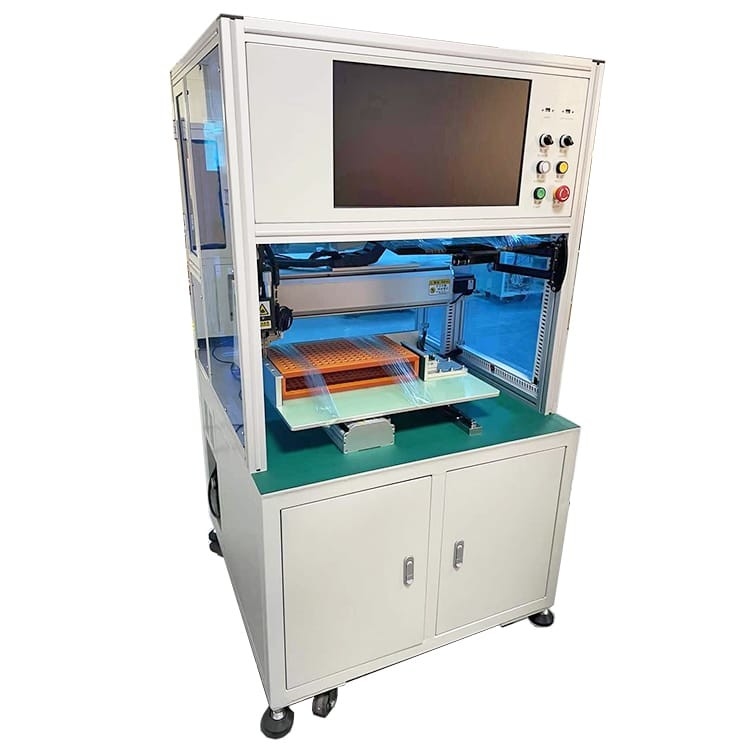

Single Side 18650 Battery Pack Welding Machine With DC Inverter
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-ASWC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 8000-12000/pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Brand Name: | XWELL | Input Voltage: | 220V±10% 50Hz |
|---|---|---|---|
| Welding Voltage: | 220V/380V(Optional) | Efficiency: | 3800pcs/h |
| Thickness Of Welding Nickel Sheet: | 0.08mm-0.25mm | Drive Form: | Pure Motor Drive |
| Scope Of Application: | Various Cylindrical Lithium Batteries | Machining Accuracy: | 0.01ms |
| Welding Method: | Plane Double Needle Welding | Welding Speed: | 0.35-0.8ms/piece |
| Highlight: | Single Side Battery Pack Welding Machine,DC Inverter Battery Pack Welding Machine,battery spot welder 18650 |
||
Product Description
Computer Software Single Side DC Inverter Automatic Battery Pack Welding Machine
Product Description
MD-ASWC automatic single-sided spot welding machine is suitable for spot welding of a single cell in series and parallel before assembly in the PACK factory. The electric control part of the spot welding machine adopts modular design, which has high integration, good versatility and convenient maintenance. The main actuator is controlled by a servo motor, which has high accuracy and good reliability. The electrical circuit of the equipment adopts domestic and foreign standard control devices and devices, which is convenient for maintenance and replacement. It supports automatic rotation of the spot welding head, Autocad data import, array and manual methods, which significantly improves the spot welding efficiency and guarantees the Pack production line.
The MD-ASWC Single Side Automatic Battery Pack Spot Welding Machinew is a type of single side spot welding machine with computer UI software.
Compared with MD-ASW single side spot welding machine, the operation method have been greatly improved. Humanized design makes the operation and debugging very easy and convenient. Design of components built-in makes appearance more concise.
Product Features
1. The programming interface is easy to operate. It supports CAD mapping, array and manual mode. Any group of programmable files can be stored.
2. Equipped with computer PC software, user friendly, easy for operating, welding data storage and output.
3. With welding parameter monitoring system, it can monitor welding parameters in real time.
4. Adjustable single spot welding, two-point welding, three spot welding, and the distance between two-point welding and three spot welding is adjustable.
5. It has the function of origin reset and break point welding.
6. All parameters of equipment welding can be traced to facilitate data management.
7. Custom welding head, suitable for all kinds of special-shaped batteries, as well as pure nickel welding, effectively solve the problem of sticking needle.
Product Advantages
1. Support breakpoint start, support automatic start and manual start mode conversion.
2. It has a false spot welding and out of spot welding alarm function.
3. Programming is simple, and it supports any point programming and array programming. 99 groups can be saved programming files.
4. Welding needle replacement forecast reminder.
5. Own welding current monitoring system, real-time monitoring of welding current.
Product Application
The product is suitable for welding in 18650 26650 21700 32650 electric vehicle battery pack, electric bicycle battery pack, automobile battery module, street lamp battery pack, balance car battery pack, scooter battery pack, mobile power supply, starting battery pack module, electric tool battery pack, energy storage power supply battery pack and other fields. Automatic compensation of welding pin, water cooling and heat dissipation of welding head, very beautiful welding effect, elimination of false welding, self current welding detection, high-end quality, durable, one-year warranty, lifelong maintenance!
Product Specification
|
Product Name: Computer Software Single Side DC Inverter Automatic Battery Pack Welding Machine
|
|
|
Brand name: XWELL
|
Input voltage: 220V±10% 50Hz
|
|
Model number: MD-ASWC
|
Welding voltage: 220V/380V(Optional)
|
|
Power source: Optional
|
Efficiency: 3800pcs/h
|
|
Thickness of welding nickel sheet: 0.08mm-0.25mm
|
Drive form: Pure motor drive
|
|
Scope of application: Various cylindrical lithium batteries
|
Machining accuracy: 0.01ms
|
|
Welding method: Plane double needle welding
|
Welding speed: 0.7-0.8ms / piece
|
|
Cooling method of welding needle:circulating water cooling
|
|
|
Number of file groups that can be saved: unlimited
|
|
|
Overall dimensions: 1100L * 900W * 1800Hmm
|
|
|
Shaft stroke: X-axis: 400mm, Y-axis: 400mm (customizable)
|
|
Product Details
5000A/8000A Inverter DC power suppy optional

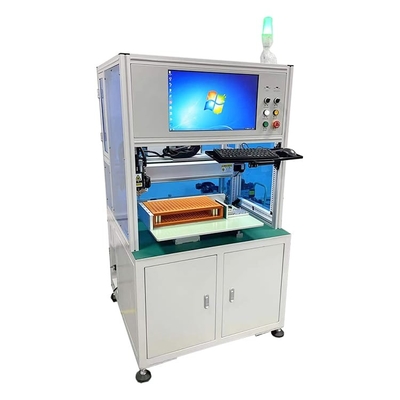

Computer software
Servo drived welding head
Battery Pack Welding Samples
Spot welding samples
The double side spot welding machine suitable for all types of cylindrical cells pack and suitable for all shapes of packs. With high quality 5000A/8000A spot welding power supply, it can weld thickness from 0.1mm to 0.3mm. Welding spot is beautiful, firm and good conductivity.
